MultiImaging Solution
Chemiluminescence, Fluorescence and Visible Imaging System

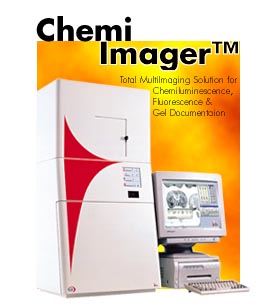

ChemiImager™ System delivers high performance for all chemiluminescence, fluorescence and gel documentation applications by using advanced thermoelectrically cooled ChemiNova™ CCD camera technology and the RSDP standard of Resolution, Sensitivity, Dynamic Range, and Performance.



ChemiImager™ System; Sample Application Images


High Density Array

Colony Counting

Protein Gel

DNA Gel

Chemiluminescence
Western blot imaged with ChemiImager™ and Vector Labs DuoLux™



Southern blot imaged with ChemiImager™ and Vector Labs DuoLux™


Key features of the ChemiImager™ System 5500

bulletSuperChemiNova™ CCD camera that delivers 12-bit (0-4,095) dynamic range and Megapixel resolution with sensitivity rivaling that of film. 16-bit file generation for easier image importation in most desktop publishing programs.
bulletReal time image display in the Focus mode for easy sample positioning and optics adjustment.
bulletAutomatic exposure algorithms in ChemiImager™ AlphaEaseFC™ software easily ensures maximum image dynamic range.
bullet'Intelligent' AlphaEaseFC™ software AND ergonomic MultiImageFC™ Cabinet touch panel excitation sources, automatic filter wheel, and motorized optics controls for total ease of use in grayscale and multiplex imaging.
bulletF1.2 zoom or F0.85 wide-angle optics maximize light transmission without optical distortions. Zoom optics are available in manual or motorized configurations with AlphaEaseFC™ software control.
bulletOptional adjustable tray is available for moving chemiluminescence samples closer to the CCD detector for improved sensitivity and spatial resolution.
bulletChemiImager™ AlphaEaseFC™ software 'one button click' automatic enhancement and analysis for 1D lane analysis, 2D spot densitometry, M.W./Rf calculations, automatic colony and cell counting, microtiter plate analysis, macroarray analysis, object distance measurements, and gel scoring.
bulletAutomatic lane/band detection and analysis with smiling corrections are easily done with a single button click!
bulletCapture grayscale or true color images with automatic RGB color image overlay feature.
bulletTotal software automation with ChemiImager™ AlphaEaseFC™ software providing the unique MovieMode™ acquisition function making chemiluminescence multiple image capture a breeze.
bulletChemiGlow™ chemiluminescence substrate kit is an ideal addition to ChemiImager™ as an optimized substrate for CCD imaging technology to generate femtogram sensitivity levels.
bullet SpectraImager™ color microscopy camera add-on provides versatility in image acquisition to create a core imaging workstation for gel, membrane, plate, and microscopy imaging applications.

The ChemiImager™ System 4400 is also available as an affordable standard resolution camera technology supplied with AlphaEase™ software and MultiImage II or MultiImage cabinets.
