Features:
Multicolor capability allows detection of SYBR®
Green I or FAM in the first channel, and a range of fluorophores
in the second channel — including TET, HEX, VIC, and TAMRA — for
a multitude of applications such as RT-qPCR and allelic
discrimination
DNA Engine®
thermal cycler offers precision thermal control and a
temperature gradient feature
permits simultaneous incubation at 12 different temperatures to
optimize reactions in a single run.
Real-time results allow for plotting of signal
intensity vs. cycle number and graphically monitoring the
thermal profile during the run.
Extraordinary sensitivity permits reliable detection
of one initial template copy, while delivering a linear range of
up to ten orders of magnitude in starting copy number (with
appropriate chemistry).
Researcher-oriented software allows quantification of
samples and generation of melting curves to verify product
identity.
Innovative optical system incorporates an array of 96
LEDs for excitation and a pair of sensitive PMTs for detection
in a robust, no-moving-part design.
High sample capacity accommodates up to 96 samples in
standard, low-profile microplates or strip tubes making
specialized disposables unnecessary.

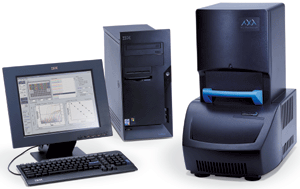

A compact footprint (34cm wide x 47cm deep x 60cm
high) ensures that the Opticon system comfortably fits on any
lab bench.
